Analog Temperature Controller เครื่องควบคุมอุณหภูมิแบบอะนาลอก article

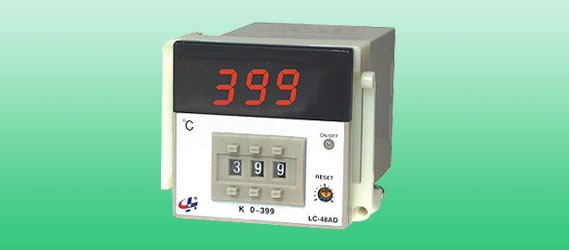

LC-48AD.jpgLC-48,LC-48D, LC-48S,LC-48DS,LC-703,LC-704,LC-72,LC-72D,LC-72S,LC-72DS,LC-48A,LC-73N,LC-48AD

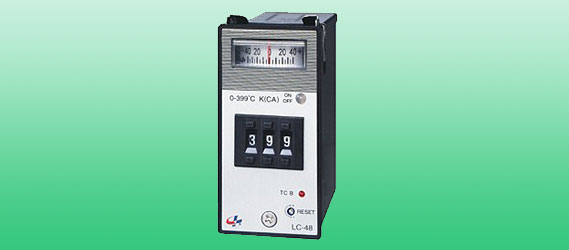

CLASSIFICATION

48mmX96mm TEMPERATURE CONTROLLER

MODEL

LC-48

DIMENSION

96HX48WX108D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 2.5%

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: 3.5VA

ACCESSORY FUNCTION

Recongnition sensor break

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity 85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)







CLASSIFICATION

48mmX96mm TEMPERATURE CONTROLLER

MODEL

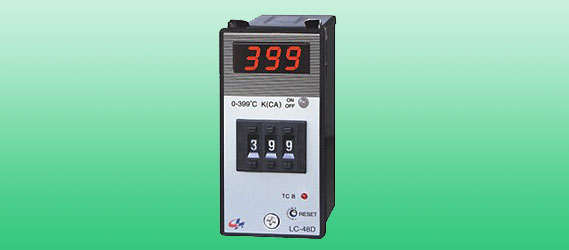

LC-48D

DIMENSION

96HX48WX108D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)





CLASSIFICATION

48mmX96mm TEMPERATURE CONTROLLER

MODEL

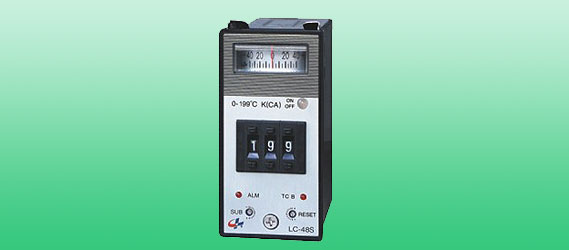

LC-48S

DIMENSION

96HX48WX108D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 2.5%

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break,Alarm Action

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

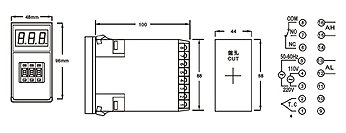

DIMENSION(mm)

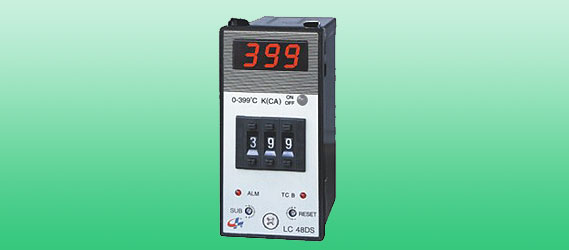

CLASSIFICATION

48mmX96mm TEMPERATURE CONTROLLER

MODEL

LC-48DS

DIMENSION

96HX48WX108D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 1% full scale 1 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: 3.5VA

ACCESSORY FUNCTION

Recongnition sensor break, Alarm Action

AMBIENT TEMPERATURE

Temperature 0oC +50oC Humidity 85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)

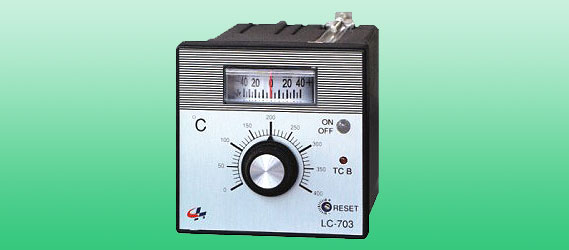

CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

LC-703

DIMENSION

72HX72WX110D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 200oC, 0 400oC, 0 600oC, 0 800oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 2.5% full scale

INDICATED ACCURAY

Less than 2.5%

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: 3.5VA

ACCESSORY FUNCTION

Recongnition sensor break

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity 85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)

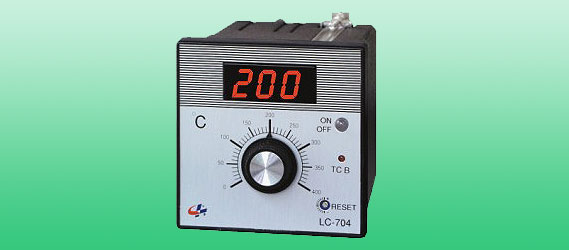

CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

LC-704

DIMENSION

72HX72WX110D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 200oC, 0 400oC, 0 600oC, 0 800oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 2.5% full scale

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)





CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

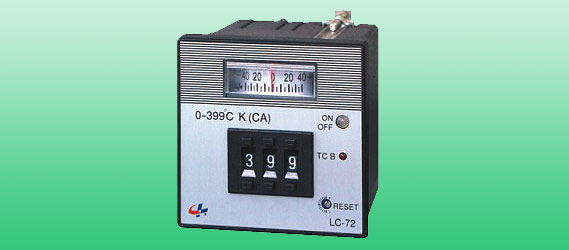

LC-72

DIMENSION

72HX72WX110D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 399oC, 0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 2.5%

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break,Alarm Action

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

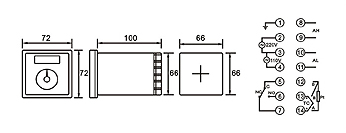

DIMENSION(mm)

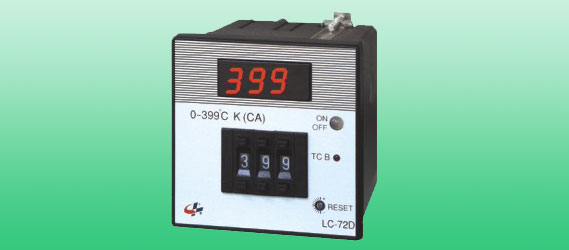

CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

LC-72D

DIMENSION

72HX72WX110D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 399oC, 0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: 3.5VA

ACCESSORY FUNCTION

Recongnition sensor break

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity 85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)

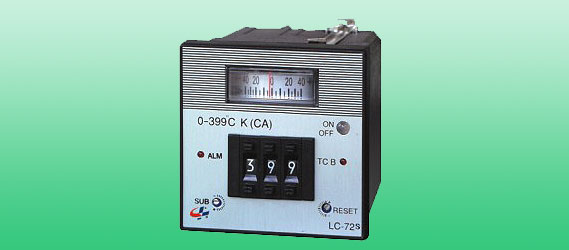

CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

LC-72S

DIMENSION

72HX72WX110D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 399oC, 0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 2.5% full scale

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break,Alarm Action

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)





CLASSIFICATION

72mmX72mm TEMPERATURE CONTROLLER

MODEL

LC-72DS

DIMENSION

72HX72WX110D

SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 399oC, 0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Recongnition sensor break,Alarm Action

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

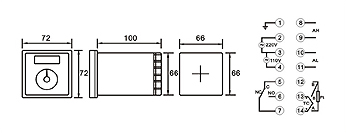

DIMENSION(mm)





CLASSIFICATION

48mmX48mm TEMPERATURE CONTROLLER

MODEL

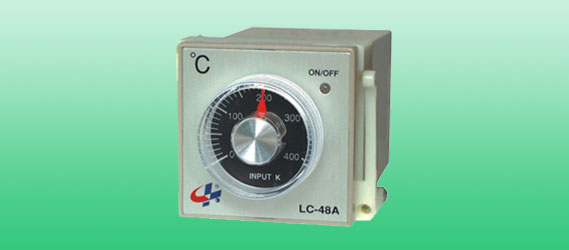

LC-48A

DIMENSION

48HX48WX105D

DISPLAY MODEL



SCALE RANGE

VR SETTING: 0 100oC, 0 200oC,0 400oC, 0 600oC,0 800oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 2.5% full scale

INDICATED ACCURAY

- -

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: 3.5VA

ACCESSORY FUNCTION

- -

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity 85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)





CLASSIFICATION

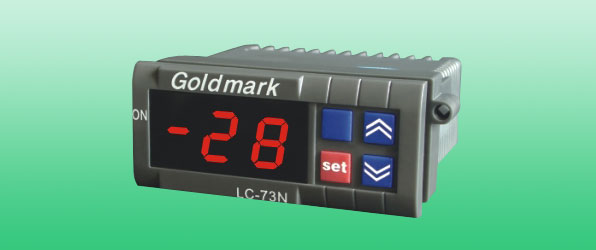

75mmX33mm TEMPERATURE CONTROLLER

MODEL

LC-73N

DIMENSION

33HX75WX70D

DISPLAY MODEL



SCALE RANGE

SOFT TOUCH SETTING: -19.9 +50oC

INPUT TYPE

NTC

SETTING ACCURACY

Less than 1.5% full scale 2 number

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Retay

RAGED VOLTAGE

AC:110,220V 15%, 50/60Hz

PROPORTIONAL CYCLE

- -

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

Output Delay Madel

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)





CLASSIFICATION

48mmX48mm TEMPERATURE CONTROLLER

MODEL

LC-48AD

DIMENSION

48HX48WX105D

DISPLAY MODEL



SCALE RANGE

DIGITSETTING: 0 99.9oC, 0 199oC,0 399oC, 0 999oC

INPUT TYPE

K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω

SETTING ACCURACY

Less than 1.5% full scale

INDICATED ACCURAY

Less than 1% full scale 2 number

CONTROL FORM

ON/OFF only, proporation(PD)

OUTPUT MODEL

Relay SPDT 5A 250VAC,12VDC for SSR drive

RAGED VOLTAGE

AC:110/220V 15%, 50/60Hz

PROPORTIONAL CYCLE

RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC

CONCUMED POWER

About: ≤3.5VA

ACCESSORY FUNCTION

- -

AMBIENT TEMPERATURE

Temperature 0oC~+50oC Humidity≤85%RH

INSULATION STRNGTH

AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)

INRTULATION RESISTANCE

100M , DC500V (POWER END AND EXTERNAL JUNCTION END)

DIMENSION(mm)











*ชื่อ-สกุล:
*บริษัท:
*โทรศัพท์:
โทรสาร:
*อีเมลล์:
website:
*ข้อความ:


Product สินค้า

Proximity switch สวิตช์ ตรวจจับ ด้วย สนามแม่เหล็ก article
Temperature Indicator เครื่องแสดงอุณหภูมิ article
Photoelectric Sensor เครื่องตรวจจับด้วยลำแสง article
Area Sensor article
Load Cell เซนเซอร์น้ำหนัก article
Timer เครี่องตั้งเวลา article
Counter เครื่องนับจำนวน article
Protection Relay รีเลย์ป้องกัน article
Inverter เครื่องปรับความเร็วรอบ article
TAIE Micro ComputerTemperature Controller เครื่องควบคุมอุณหภูมิ
Solid State Relay article
Autonics article
Multimeter article
Digital Panel Meter article
Safety Module BTi article




ออโตเมชั่นมอร์.คอม ๕๑/๘๔๙ หมู่ที่ ๒ ซ.ลำลูกกา๑๓ ถ.ลำลูกกา ต.คูคต อ.ลำลูกกา จ.ปทุมธานี ๑๒๑๓๐ โทรศัพท์ ๐-๒๙๙๕-๕๕๗๑-๒ โทรสาร ๐-๒๙๙๕-๕๕๗๓
มือถือ ๐๘-๖๓๓๘-๖๘๒๓,๐๘-๖๓๔๑-๕๘๘๖-๗,๐๘-๔๑๔๑-๒๖๕๔
Automationmore.com 51/849 Moo 2 Soi Lamlukka13, Lamlukka rd., Kukot, Lamlukka, Pathumthani, Thailand 12130 Tel.0-2995-5571-2 Fax. 0-2995-5573
Mobile. 08-6338-6823,08-6341-5886-7,08-4141-2654
http://www.automationmore.com E-mail: sales@automationmore.comเลขทะเบียนพาณิชย์อิเล็กทรอนิกส์ เลขที่ 0135550035129

Copyright © 2010 All Rights Reserved.
